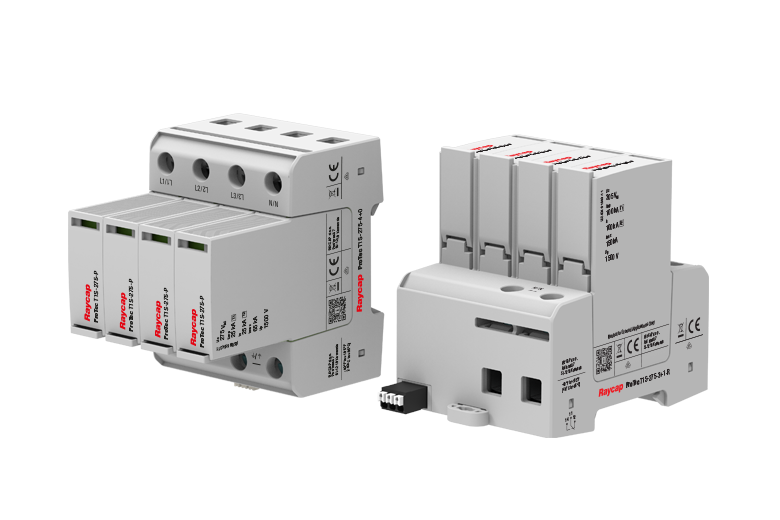

ProTec T1S
Features and Advantages:
• Dissipation capacity from 100 kA (10/350 μs) to 4TE
• Leakage Current Free topology
• Compact, pluggable housing
• For networks with high prospective short-circuit residual currents (SCCR)
• Suitable for repeated processes in networks with an Ip up to 50 kA 50/60 Hz
• Low residual voltage of Up = 1.5 kV
• Can be combined with Type 2 or Type 3 SPDs
• Reduced follow-on current due to multi-cell design
• Fulfills test Class I according to IEC 61643-11
• VDE-certified
DATA SHEETS | INSTALLATION INSTRUCTIONS |
ProTec T1S Series | ProTec T1S Series |
ProTec T1S 1+0 | ProTec T1S GDT Series |
ProTec T1S 2+0 | ProTube Type 1 Series |
ProTec T1S 3+0 | |
ProTec T1S 4+0 | |
ProTec T1S 1+1 | |
ProTec T1S 3+1 | |
ProTec T1S 3+1 N |
